1.Pipe & Fitting - COATED STEEL PIPE

External Anti-corrosion Protection Systems :
Fusion Bonded Epoxy (FBE)
Three-layer polyethylene/polypropylene external pipe
coating systems

Fusion Bonded Epoxy Coating System :
Fusion Bonded Epoxy (FBE) coating system is an externally-applied thermosetting resin for pipe. It is applied in the form of a dry powder at thicknesses of 400-600 microns onto the heated surface of the steel pipe.

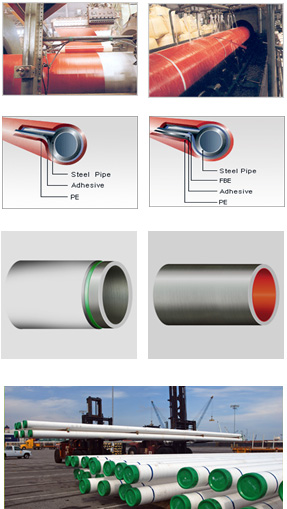

Three-Layer Coating Systems:
Three-layer pipe external anti-corrosion system consists of a layer of high-performance Fusion Bonded Epoxy onto which a co-polymer adhesive layer is extruded, followed by a layer of extruded polyethylene or polypropylene until the desired thickness is obtained.

Advantages OF THE Three-Layer Coating System :
  - Excellent corrosion resistance.
  - Strong steel adhesion
  - Excellent cathodic disbondment test results
  - Excellent mechanical resistance
  - Free of holidays:

Protecting internal pipe surfaces :
To protect internal pipe surfaces from corrosive and erosion effects as well as reduce friction and turbulence to increase flow efficiency. The coating also acts as protection while in storage and during transport.
Depending on customer specifications,
Internal anticorrosion options is :
- Liquid Epoxy
- Internal FBE
- Special anticorrosive painting
